3 phase single pump 22kw home water pump controller

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


Product Description

Y1 series LCD three phase water pump controller is used to control and protect water pumps,motors and motor equipped devices,and its rated powers range from 0.75KW to 22KW.The control mode is one to one which one controller is used to control one pump.The box is made of ABS plastics which provides robust protection for indoor uses.


Typical application scenarios:

-Agricultural irrigation/ pumping

-Pressure Booster Systems

-Waste water treatment

-Water Tanks/Wells

-Drainage System

-Cooling Towers

-Flood Control

-Fishing Boat


Specifications of water pump controller

General Specification
Type Y1
Model Y1-4KW Y1-7.5KW Y1-11KW Y1-15KW Y1-18.5KW Y1-22KW
Rated Power 0.75-4KW 1.1-7.5KW 1.1-11KW 2.2-15KW 3-18.5KW 4-22KW
Rated Input Voltage 380+10%/50Hz or 60Hz
Qty.of Controlled Pump Single pump
Display LCD display
Signal Transmission Mode Level float switch
Level probe
Pressure switch
Electric contact pressure gauge
Water Level Indication High/Middle/Low
Max.Control Distance ≤2000m without strong electric and electromagnetic fields
Over/under-voltage Range 304V-456V(adjustable)
Protections Pump stalled protection
Dry run protection
Over-load protection
Under-voltage protection
Over-voltage protection
Open phase protection
Short circuit protection
Main Functions Time setting
Fault detection
Anti-rust inspection
Automatic restart after power recovery
Working temperature
Working humidity
Degree of protection
Install position
-25ºC-- +55ºC
20%--90%RH, no drips concreted
IP22
Wall mounting
Product Size 320x220x125mm
Package Box size:26.2*17.2*38cm
Carton size:54*39.5*55.5cm
PCS/CTN:6


图片3图片13water pump controller图片6图片7图片8图片9图片10


1)How to convert HP into KW ?
The conversion formula as :1HP=0.74KW
for example: 3PH=3x0.74KW/PH=2.22KW.

2)How to choose the power of your pump controller?
Normally we need choose bigger power to run the water pump or motors,.If the pump rated power is 4KW,Pump controller should choose 7.5KW.For Submersible pumps which used in the deep well,please check with us first .

3)Can I have the samples of your pump controller ?
Yes, we can send you the pump controller samples for your testing .

4)Can you provide OEM or ODM  ?
Yes,we can make the ordes according to your detailed request.

5)what is your delivery time?
It takes 3-5 days for sample orders,and 15-20 days for orders

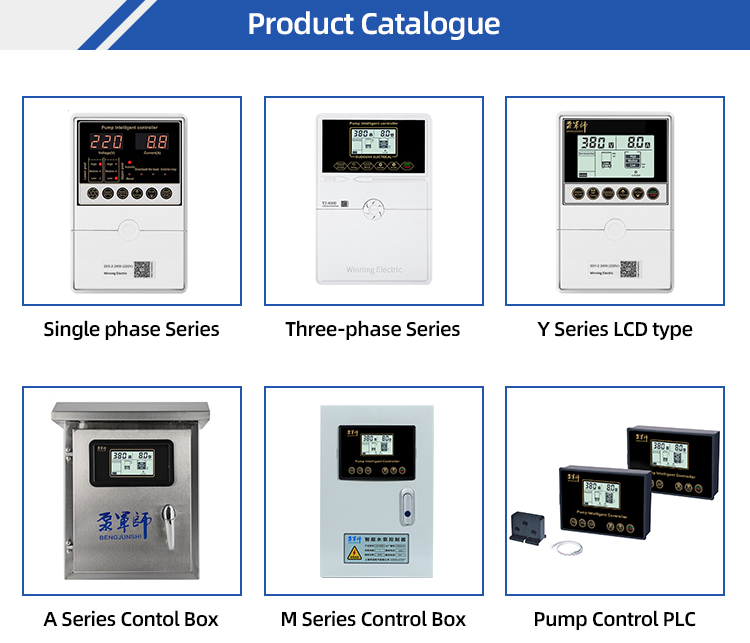

product catalogue
